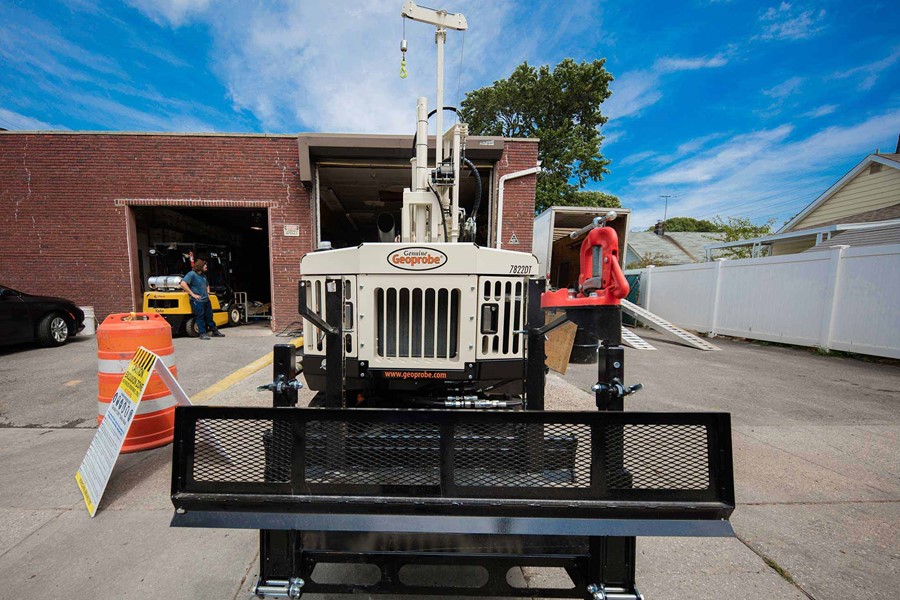

Direct push technology, often referred to as DPT, uses the static weight of the rig combined with a hydraulic hammer to advance tooling or instrumentation through the subsurface. Unlike rotary, the drill cuttings are not removed from the hole. The speed and depth of penetration is largely dependent on the soil type, the size of the sampler, and the weight and power of the rig.
These systems can be used to perform subsurface soil, water or vapor surveys. They are capable of obtaining soil and groundwater samples, installing standard and pre-packed monitoring wells, and have geotechnical capabilities when equipped with 140 lb. hammer. They can drill and set piezometers, inclinometers, and vapor points; and support injection of a variety of remediation compounds.
Soils samples can be collected in clear plastic (PVC), Teflon (PTFE), brass, or stainless steel liners, depending on project requirements. These liners can be capped and sent to your laboratory for analysis.
Groundwater samples can be collected utilizing screen points, mill-slotted well points, peristaltic pumps, tubing and check valves, mini bailers, and screen implants. The method to be chosen for groundwater collection depends on the aquifer's characteristics, sample contaminants, and the objectives of the project. Monitoring wells of up to four inches in diameter may be installed in the right subsurface conditions. The type of well completion will depend on the soil characteristics and the objective of the project.
The Geoprobe® Post Run Tubing (PRT) system can be used for soil-vapor collection. This system utilizes a three-way valve connected to the tubing: one running from the bottom of the boring, one to the purging pump and another to the sampling container, for an undisturbed soil vapor sample. Cascade also provides many other tooling and material configurations for sub-slab sampling.
